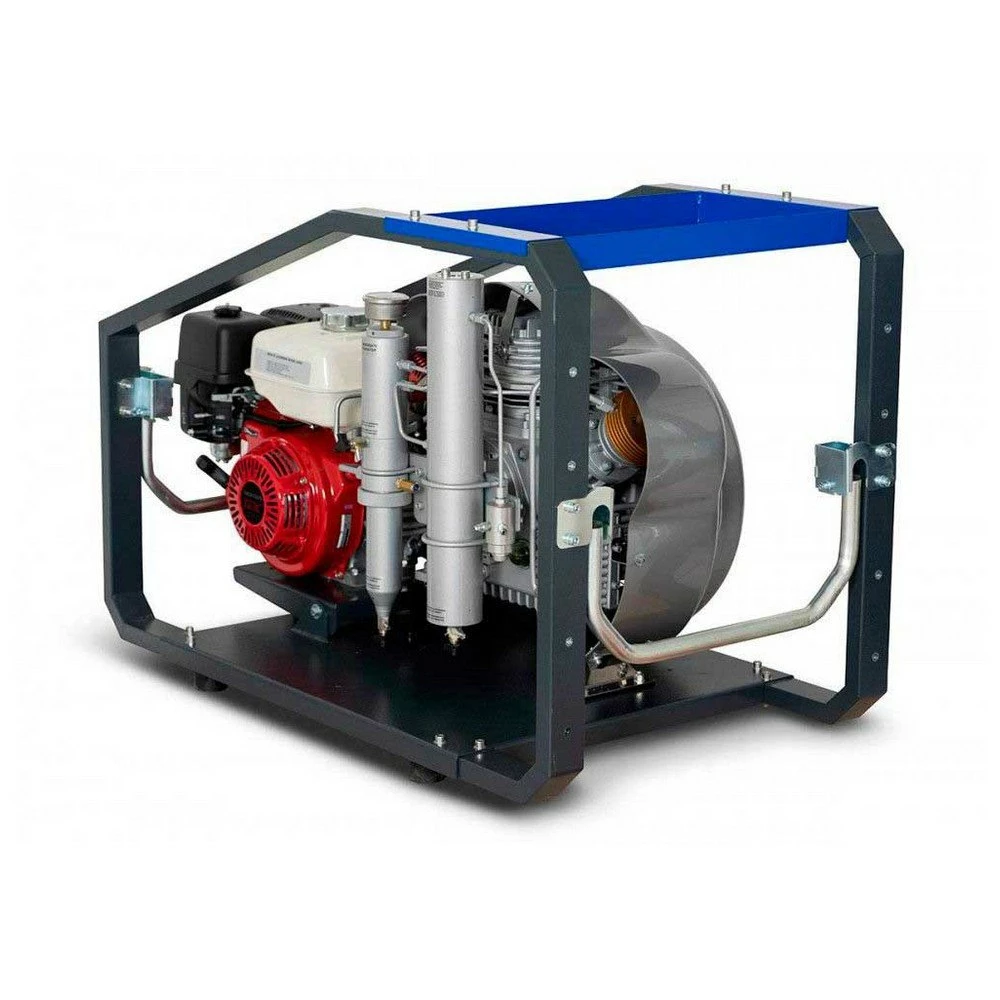

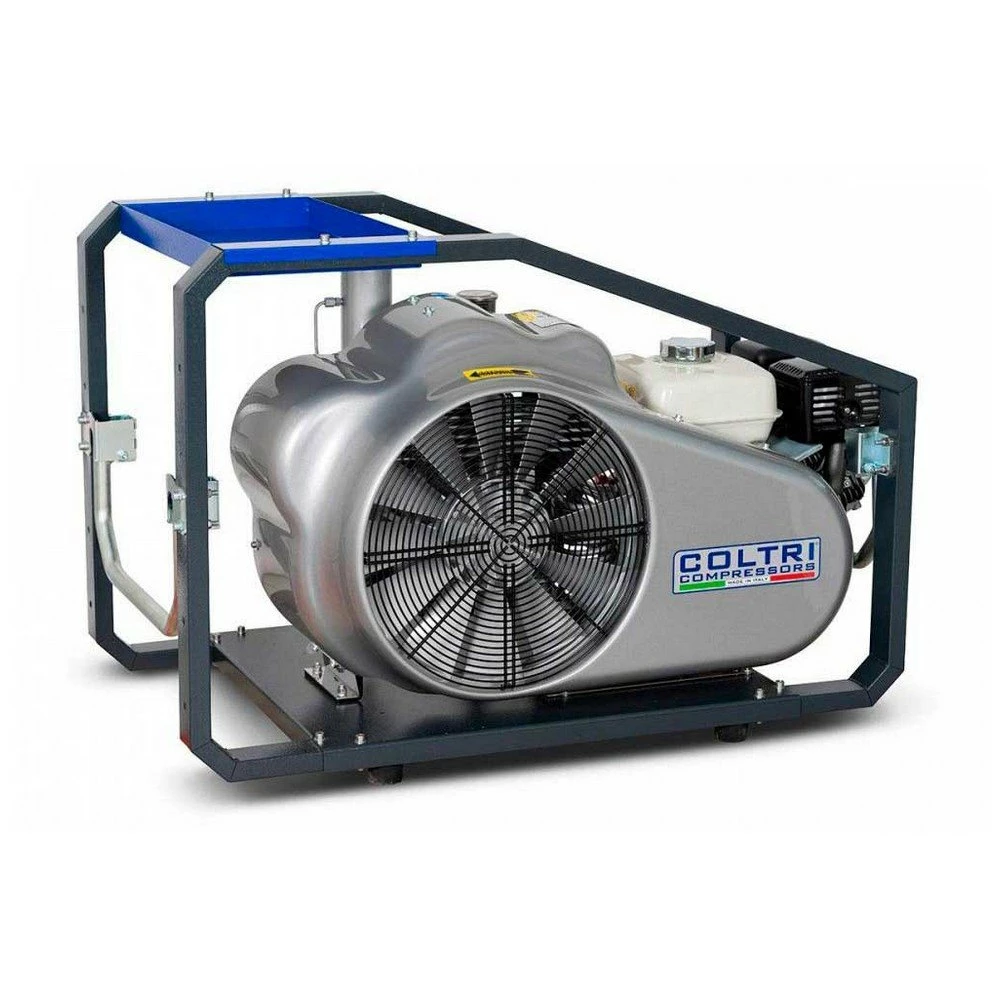

MCH16 Ergo Petrol Compressor

Model not valid for the American market, 50 Hz electric motor.

The latest model to join the Efficient line, the Coltri ERGO PETROL Breathing Air Compressor is an excellent choice for those who need an easy to use, versatile and portable compressor.

It is equipped with 2 front filling connections for high pressure hoses (from 232 to 330 bar), a Honda petrol engine and the robust MCH 16 STANDARD pumping unit.

The ergonomic frame cools the equipment perfectly by means of its composite casing.

The remote filling panel is available as an optional extra.

MCH 16 SH Frame:Ergo Petrol Line:Efficient Technical drawing H:770 mm – W:1220 mm – D:630 mm H:30.31 in – W:48.03 in – D:24.80 in Disegno tecnico compressori MCH 16 SH MCH 16 SH Characteristics Technical specifications.

Drive Honda GP 200 Pumping group capacity 315 l/m – 18,90 m³/h – 11.12 CFM FAD Filling time:* * Cylinder filling time from 10 l-0/200 bar (cylinder filling measurement from 0 to 200 bar ± 5%) 6 min.

20 sec.

Operating pressure 232 – 300 – 330 bar 3365 – 4351 – 4786 PSIG Net weight 121 kg – 267 Lbs Noise level 95,6 db.
